PROGRAMMATORE USBISP USBASP ATMEL AVR - ALLUMINIO

PROGRAMMATORE USBISP USBASP  ATMEL AVR - ALLUMINIO

1 - No need to install drivers. Plugged into a computer USB port, it will prompt the discovery of Engineering Input Devices.You may use PROGISP if it doesn't work automatically.

2 - Perfectly support WINXP, VISTA, WIN732 64-bit operating systems.

3 - Using USB port power supply, 500mA recoverable fuse, a short circuit current limit, the target board can simultaneously power with USB.

4 - Download is complete does not affect the operation of the target board.

5 - Support S51 and AVR chips burn faster than parallel port ISP is faster, more stable

6 - There is no parallel port and the best choice for notebook computers. (3.3V version can not support burning S51, S51 series 3.3V can not be downloaded).

7 - Using the latest version of the ultra-stable firmware, no hardware jumper selectable low-speed download, download faster and more stable.

8 - Using standard IDC10 interface.

Supported chip:

51 Series：

AT89S51 AT89S52 AT89S53 AT89S8253 AT89S2051 AT89S8252 AT89S4051

AVR Series ：

AT90can128 AT90can32 AT90can64 AT90pwm2 AT90pwm3 AT90s1200 AT90s2313

AT90s2323 AT90s2343 AT90s4414 AT90S8515 AT90S8535 AT90usb1286

AT90usb1287

Atmega103 Atmega128 Atmega1280 Atmega1281 Atmega16 Atmega161

Atmega162 Atmega163 Atmega164 Atmega165 Atmega168 Atmega169

Atmega2560 Atmega2561 Atmega32 Atmega323 Atmega324 Atmega325

Atmega3250 Atmega3259 Atmega329 Atmega3290 Atmega406 Atmega48

Atmega64 Atmega640 Atmega644 Atmega645 Atmega6450 Atmega649

Atmega6490 Atmega8 Atmega8515 Atmega8535 Atmega88

Attiny11 Attiny12 Attiny13 Attiny15 Attiny22 Attiny2313 Attiny24

Attiny25 Attiny26 Attiny261 Attiny28 Attiny44 Attiny45 Attiny46

Attiny461 Attiny84 Attiny85 Attiny861

Package Includes:

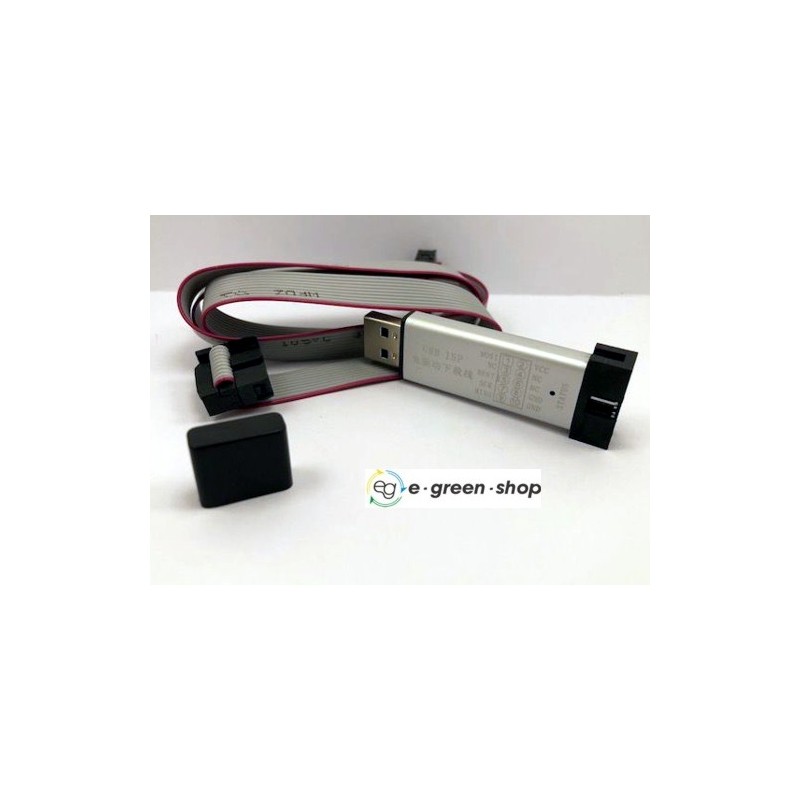

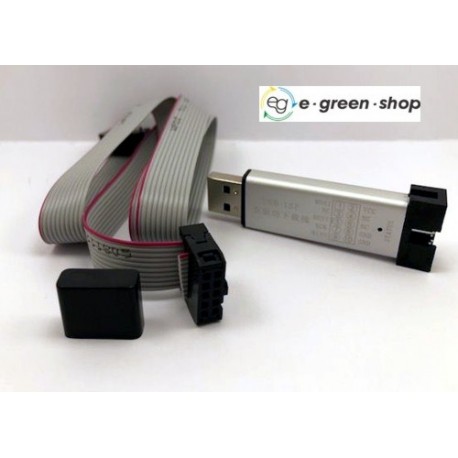

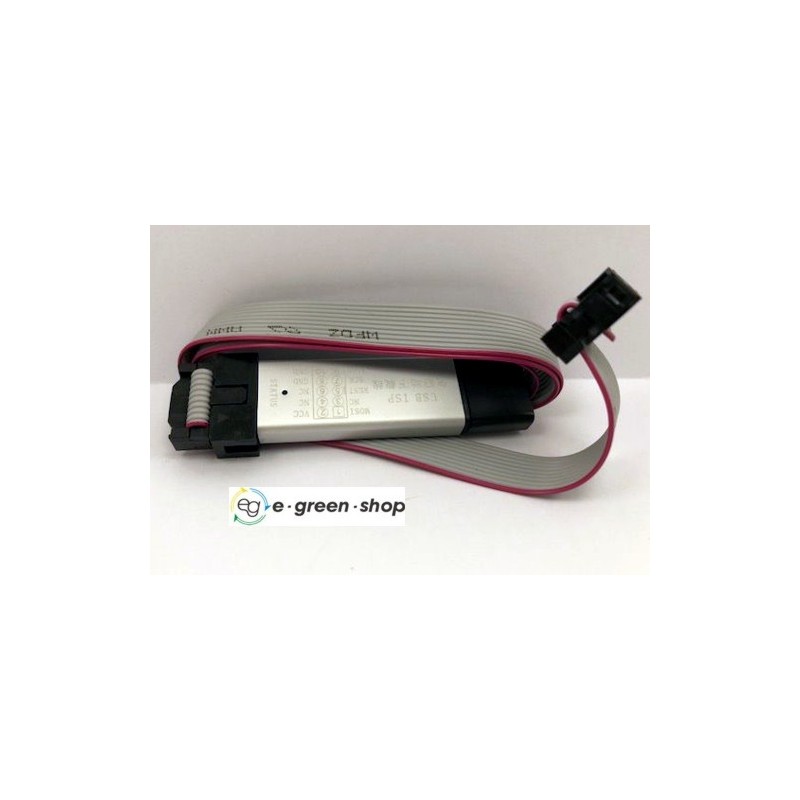

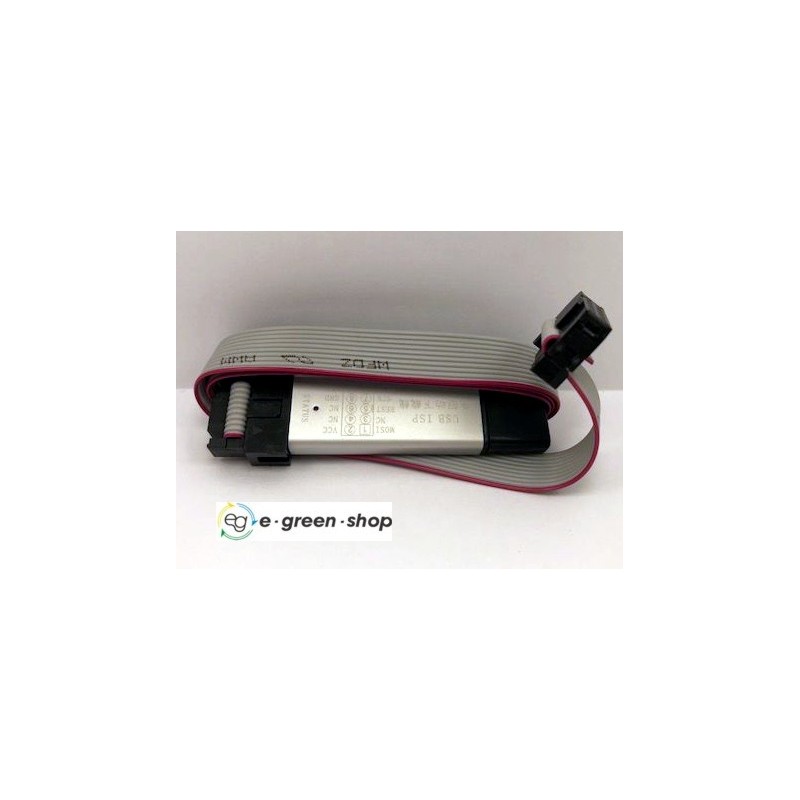

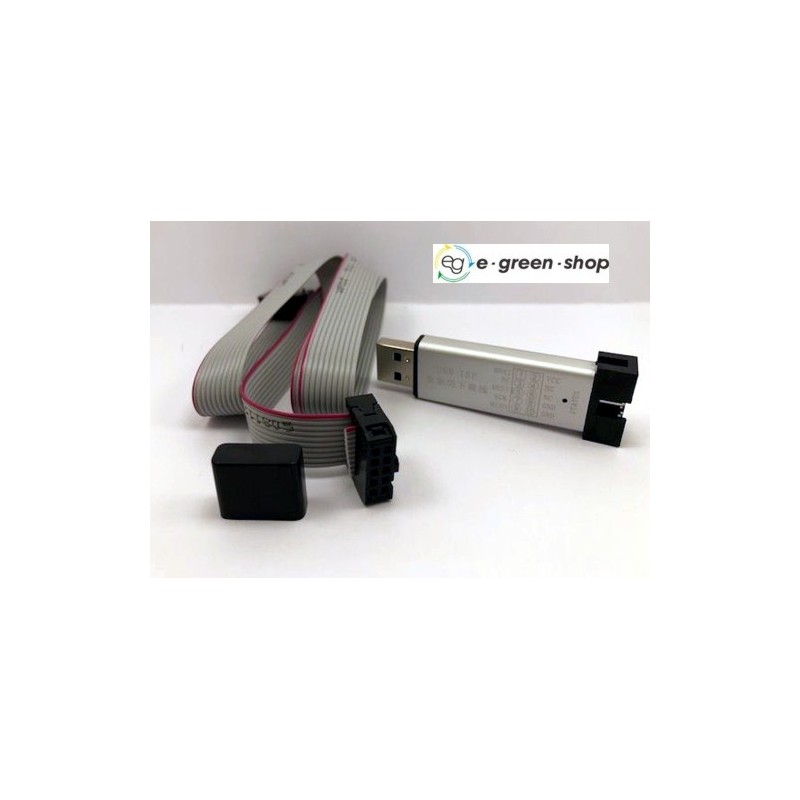

USBasp USB ISP Programmer Adapter x1

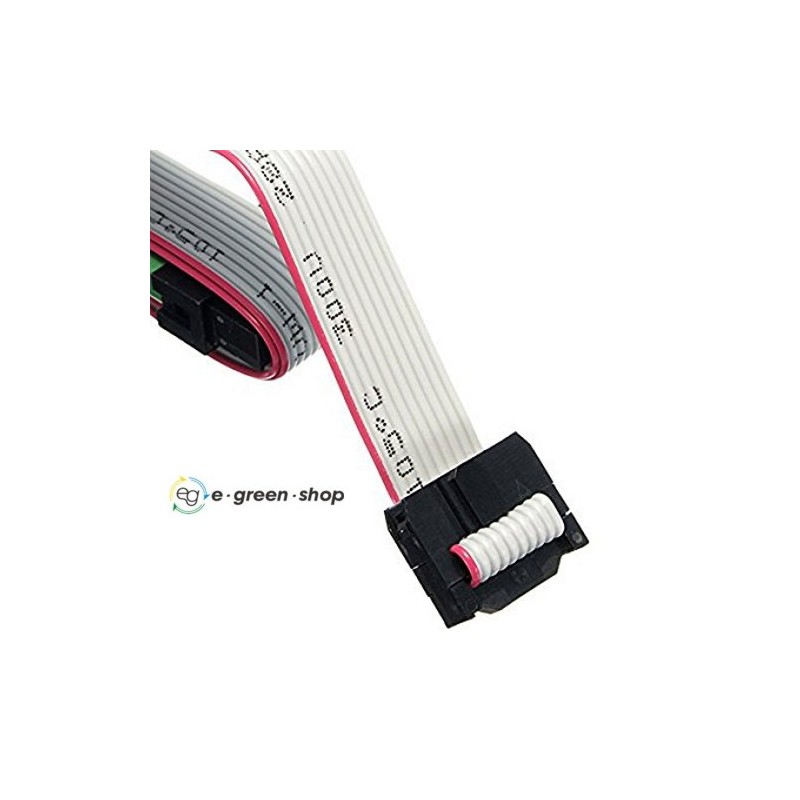

CABLE FLAT
