ADATTATORE SERIALE USB a TTL - CHIP CP2102 Visualizza ingrandito

ADATTATORE SERIALE USB a TTL - CHIP CP2102

PROTCN06

Nuovo prodotto

ADATTATORE SERIALE USB a TTL - CHIP CP2102

Maggiori dettagli

13 Articoli

2,90 €
IVA inclusa

Dettagli

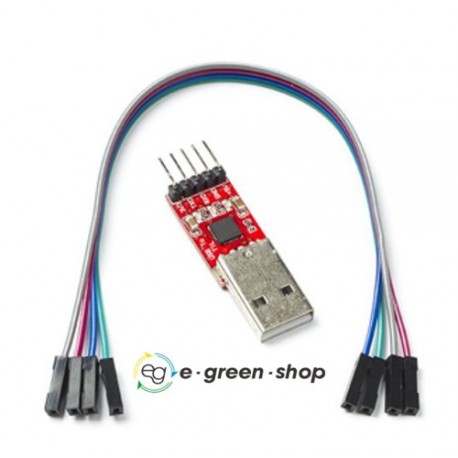

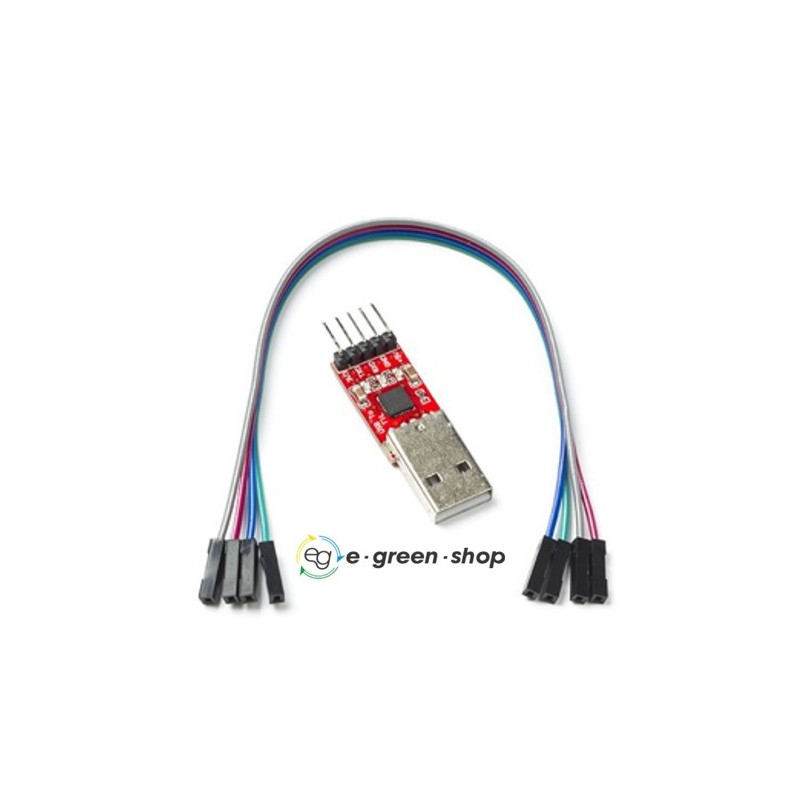

ADATTATORE SERIALE USB a TTL - CHIP CP2102

Questa scheda adattatore permette al tuo PC di comunicare con il microcontroller, sono inclusi cavi da 20cm.

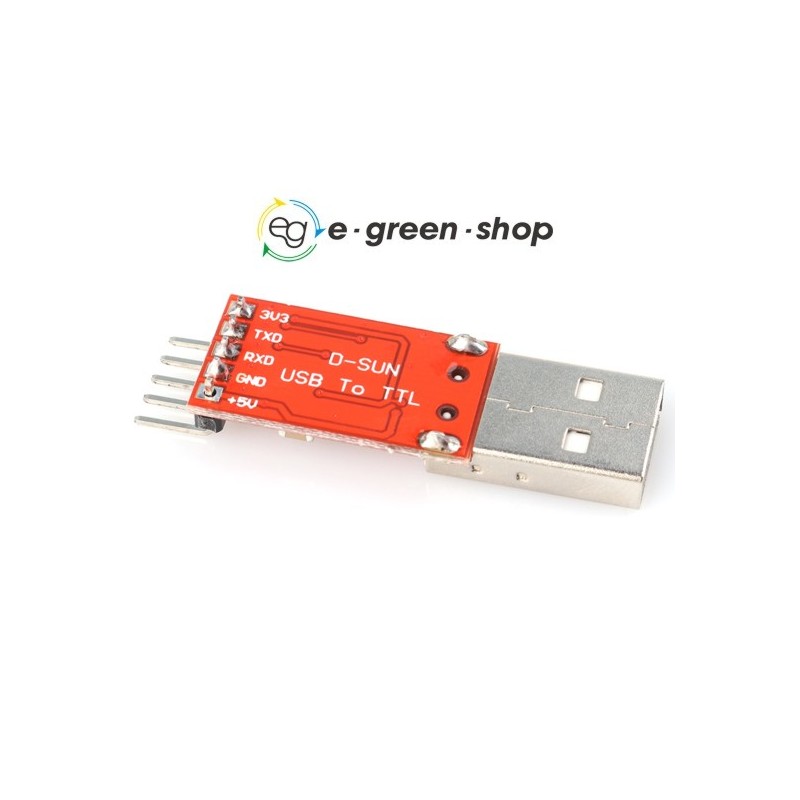

Spiegazione dei pin:

3,3V - alimentazione 3V3
TXD - Pin di trasferimento
RXD - Pin di ricezione
GND - Terra
5V    - Alimentazione 5V

CP2102 USB to TTL UART SERIAL CONVERTER

Product Description

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. CP2102 Based boards are better, reliable and faster than Cheap PL2303 based boards. This board can be easily used in conjunction with Arduino Pro / Arduino Pro Mini boards for Programming.

  •  Board includes 3.3V and 5V dual power output
  •  Built In with self-recovery fuse. In the event of accidental short circuit, it can effectively protect your computer USB port and Target
  •  Board work well with both 3.3V Arduino boards and 5V Arduino Boards
  •  Board includes with three LEDs: power indicator, data reception indicator, the data transmission indicator.
  •  Built In 640 byte receive buffer and 512 byte transmit buffer
  •  Baud rates support : 300 bps to 1 Mbps.
